The railways built 350 20 ton open wagons during 1925/1926. These were the first of the _I__ wagons to break the 16 ton load capacity. They were built as I wagons and were recoded to IY in 1929 as part of a project to segregate I wagons into capacity groups. The wagon numbers were 15220 - 15569.
Capacity was raised from 20 tons to 22 tons from late 1929.
They were originally fitted with stays between the "W" guards ( axle box supports ) and the underframe. It seems that these stays remained until the mid 1950's, possibly removed at the same time as buffers.
The class remained intact until the mid 1950's when conversions to specialised wagons began.
In 1948, some non grain proof wagons were issued to service with the IY code. Possibly to segregate the rivetted wagons from the new welded wagons, these new wagons introduced in 1948 were recoded to _IO_. As the 'IO' code proved unsuitable for service, the wagons were relettered once again, this time to _HY_. These wagons were numbered in the group from 15870 onwards.
Vehicle history list - IY (GY)
Photos for 'IY '

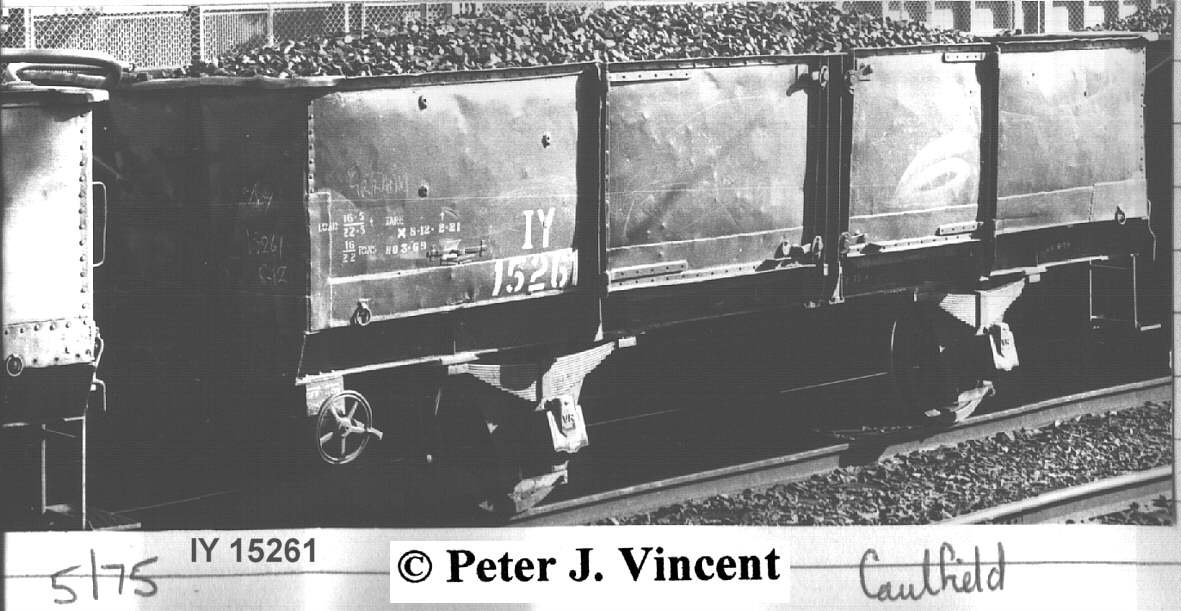

FileID Description................................................BG532 IY - (1500x), s1e1c, Jolimont Workshops, 26/10/1975, [oPJV]DA648 IY 15257 - s2e1, L7, Berwick, 17/7/1976, [oPJV]AM029 IY 15261, [oPJV]DN750 IY 15269 - s1, Dandenong, 30/1/1977, [oRXO]CC313 IY 15269 - tarped s1e2, Ararat, 29/4/1979, [oPJV]DN751 IY 15275 - s2, brake gear silhouette, Rangelea, 13/11/1976, [oRXO]AM028 IY 15288, [oPJV]B1338 IY 15334 - OR, Tottenham Yard, 16/4/1978, [oPJV]CU711 IY 15363, Arden Street, 11/1/1979, [oPJV]DN902 IY 15370 - s1, tarped, East Yard, 18/11/1976, [oRXO]AH577 IY 15397, 1978, [oBAU]DN903 IY 15413 - s2e1, Cobden, 28/11/1976, [oRXO]CG112 IY 15415 - tarped disk wheels, 4/1978, [oPJV]CI920 IY 15431 - OR, Tottenham Yard, 18/3/1979, [oPJV]CN064 IY 15431 - s1e2, Dandenong, 1970s, [oBAU]DN904 IY 15449 - s1, Bendigo, 13/11/1976, [oRXO]DN905 IY 15465 - s2, tarped, East Yard, 12/1976, [oRXO]DN906 IY 15475 - s2, tarp part removed a/c unloading, Mortlake, 28/11/1976, [oRXO]BK977 IY 15479 - e2p, Castlemaine, 29/6/1975, [oPJV]BL014 IY 15479 - e2p, Castlemaine, 29/6/1975, [oPJV]BK976 IY 15479 - e2q, Castlemaine, 29/6/1975, [oPJV]BK975 IY 15479 - s1e2, L7, Castlemaine, 29/6/1975, [oPJV]AM032 IY 15508, [oPJV]AV739 IY 15531 - s1, Newport Workshops, 19/2/1977, [oPJV]DN907 IY 15531 - s1, tarped, East Yard, 12/1976, [oRXO]DN908 IY 15556 - s2e2, Port Melbourne, 19/10/1976, [oRXO]DN909 IY 15557 - s2, Malvern Goods Yard, 21/11/1976, [oRXO]
Diagrams for 'IY '
FileID Description................................................AU699 IY - 15220+, [oD26]11785 IY - Title block/coupling gear, [oPTC]
File c178m compiled by Peter J. Vincent, updated 31/7/2007
